- Dual ceramic ball bearing system provides optimal turbo response &
better durability by reducing the shaft-motion - 13 Blade PTG-Aero billet compressor wheel 88mm inducer produces up to 2000 hp
- 9 Blade PTG-Aero Inconel 713c turbine wheel with more turbine flow
- Fin cooled aluminum center housing, lighter weight
- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
- Outline interchangeable with GTX55 Gen II turbos
- Compressor Wheel: 88.3*133.5*141.8mm
- Turbine Wheel: 118*112mm
- Compressor Inlet: 6€� Hose
- Compressor Outlet: 4€� V-band
- Compressor Housing A/R: 0.88
- Turbine Inlet: 3.5€� V-Band (DV Housings) or T6 Open
- Turbine Outlet: 4.5€� V-Band
- Turbine Housing A/R: 1.09/1.25/1.41

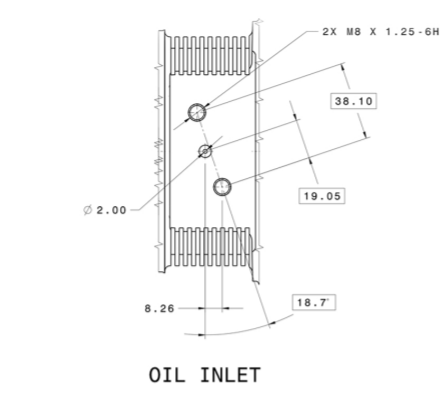

- Oil Feed: See graph below(OIL INLET) (an oil restrictor with ~1mm orifice is highly recommended)

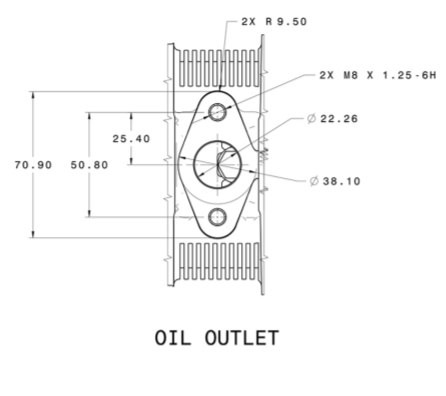

- Oil Drain: See graph below(OIL OUTLET)
Eta - 1-2 Weeks from time of order to dispatch
