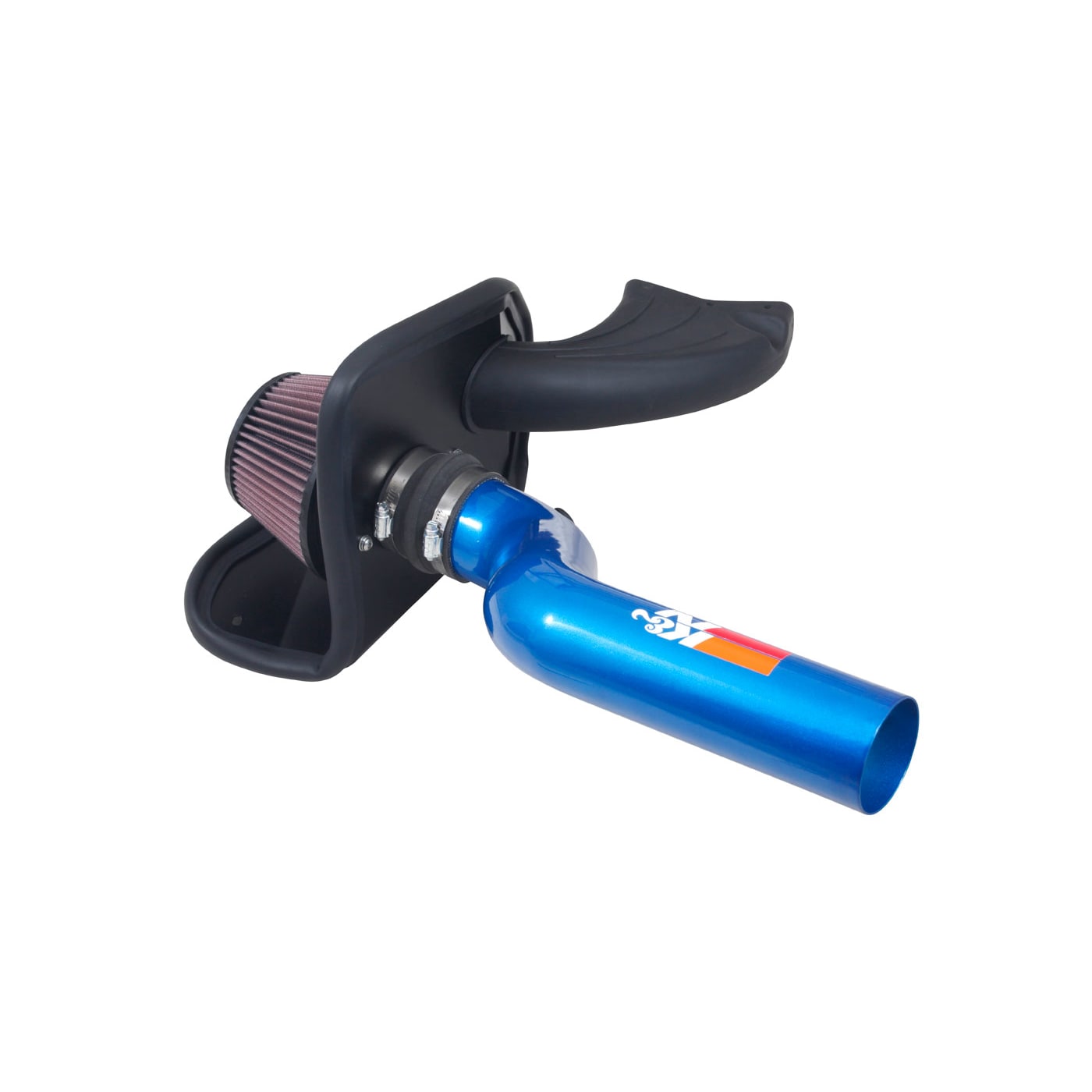

The K&N 69-3539TB Typhoon air intake system is a free-flowing, mandrel-bent aluminum tube air induction system designed to fit some Ford Focus models. The restrictive factory air filter and air intake housing are replaced by the K&N Typhoon air intake which is designed to dramatically reduce air flow restriction as it smoothens and straightens air flow. This allows your engine to inhale a larger amount of air than the factory air intake. More air means more usable power and acceleration throughout the engine's RPM range. The 69-3539TB air intake comes with a black rubber topped K&N high-flow air filter and a heat shield that installs using the factory mounting locations. A molded scoop funnels outside air towards the filter. Air is then directed through the intake tube into the engine's throttle body for a guaranteed power gain. The intake tube has an attractive blue powder-coat finish to match the car's badging and it accommodates the factory air pressure sensor. The oversized cone shaped air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This air intake is relatively easy to install usually in 90 minutes or less using existing factory mounting points. Installation can be done using common tools. Some Typhoon air intakes are not legal for sale or use in California and other states adopting California emission standards while others are CARB exempt and 50 state legal. Check the vehicle applications and specific CARB status for each vehicle and air intake.
Specification:
Estimated Horsepower Gain*: 33.01 HP @ 4904 RPM
Replacement Filter: RU-5163
Air Filter Color: Red
Air Filter Material: Cotton Gauze
Air Filter Outlet Shape: Round
Clamps Included: 3
Clamp Material: Stainless Steel
Clamp Style: Worm Gear
Couplers Included: 1
System Type: Complete Cold-Air Intake System
Product Style: 69 Series Typhoon Kits
Intake Pipe Color / Finish: Candy Blue Powder Coating
Intake Pipe Material: Aluminum
CARB EO Number: D-269-70
Street Legal In All US States: Yes
TUV Approved (Europe): No
Weight: 9.4 lb (4.3 kg)
Product Box Height: 12.5 in (318 mm)
Product Box Length: 22.25 in (565 mm)
Product Box Width: 14.25 in (362 mm)
Mounting Hardware Included: Yes
*Horsepower gains based on similar vehicle dynamometer test. Results will vary.
