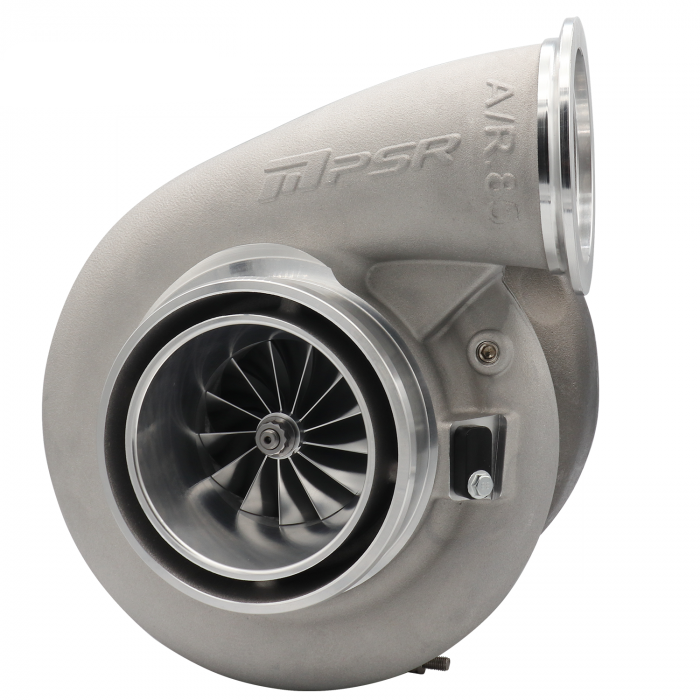

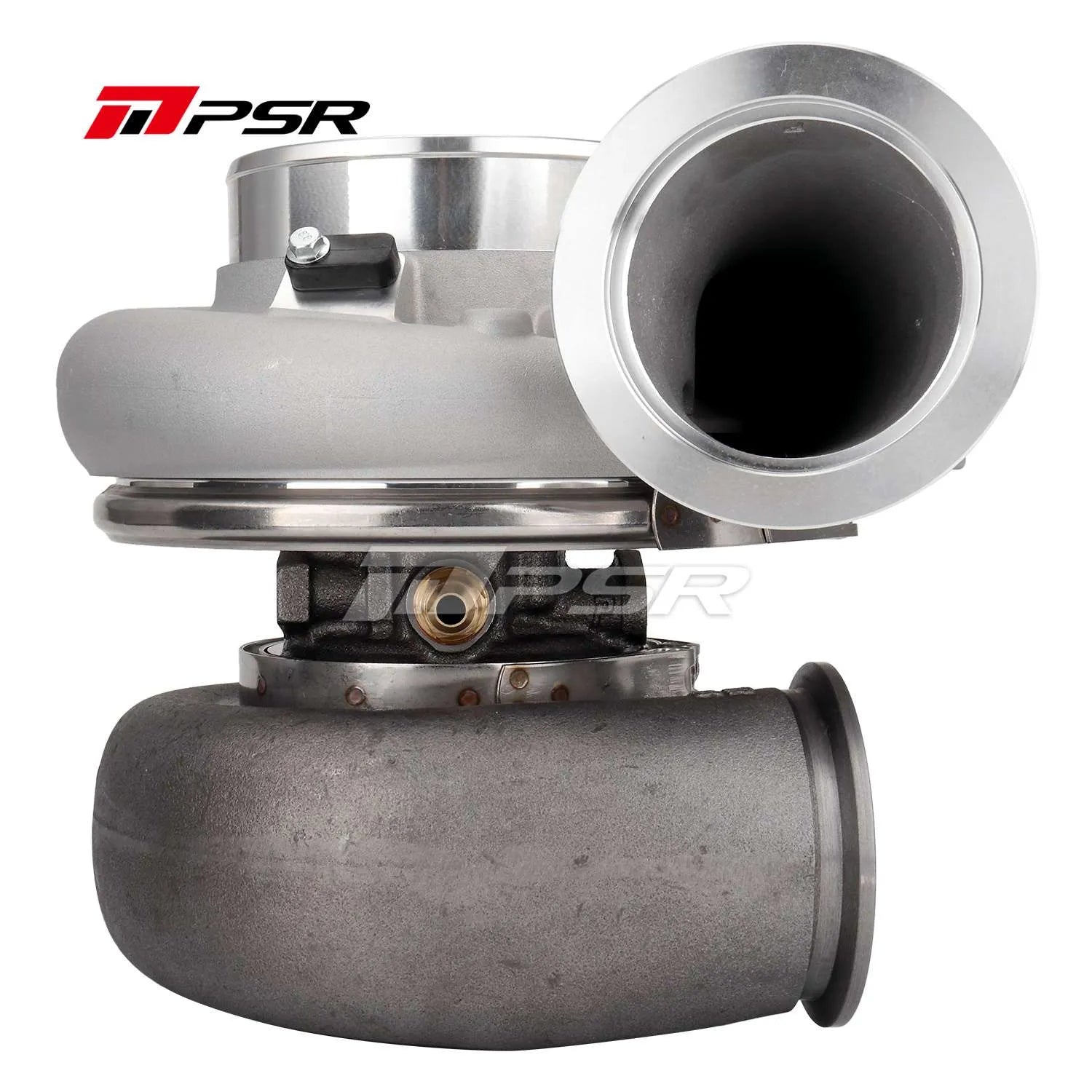

PSR 7782G 1500HP 77mm Dual Ball Bearing Turbo
- Dual ceramic ball bearing system provides optimal turbo response &
better durability by reducing the shaft-motion - 13 Blade PTG-Aero billet compressor wheel with extended tapered tip technology
- 9 Blade PTG-Aero Inconel 713c turbine wheel
- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor and pressure ports
- Water fittings included with super core
- 8 Options in Turbine Housing
- Compressor Wheel: 76.6*109.2mm
- Turbine Wheel: 89*81.6mm
- Compressor Inlet: 5€³ Hose
- Compressor Outlet: 3€³ V-Band
- Turbine Inlet: 3€³ V-Band/T4 open/ T4 divided
- Turbine Outlet: 3.5€³ V-Band
- Water Ports: -6AN
- Oil Feed: Flange Required(Recommended size: -4AN Std T4 Flange Restricted)
- Oil Drain: -12AN(O-Ring sealed Flange Kit Incl€™)
- 8 Options in Turbine Housing: T4(Open) 1.15 A/R; T4(Divided) 1.01 A/R, 1.15 A/R, 1.28 A/R, 1.44 A/R; Dual v-band 1.01 A/R, 1.15 A/R and 1.28 A/R
Eta - 1-2 Weeks from time of order to dispatch
