- Compressor Wheel: 79*98mm
- Turbine Wheel: 82*75mm
- Compressor Inlet: 5€³ Hose
- Compressor Outlet: 3€³ V-Band
- Turbine Inlet: 3€³ V-Band
- Turbine Outlet: 3.5€³ V-Band
- Water Ports: -6AN
- Oil Feed: Flange Required(Recommended size: -4AN Std T4 Flange)

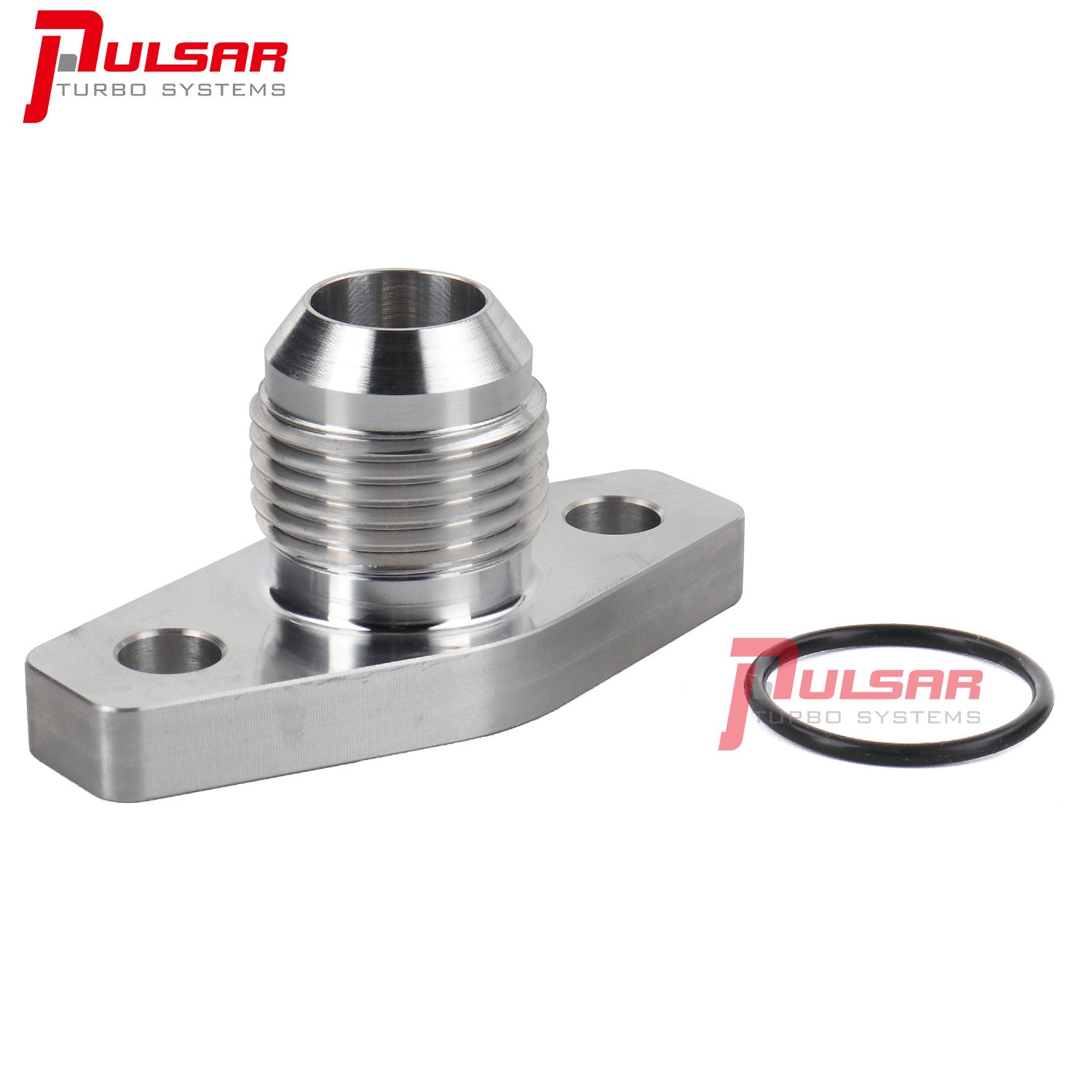

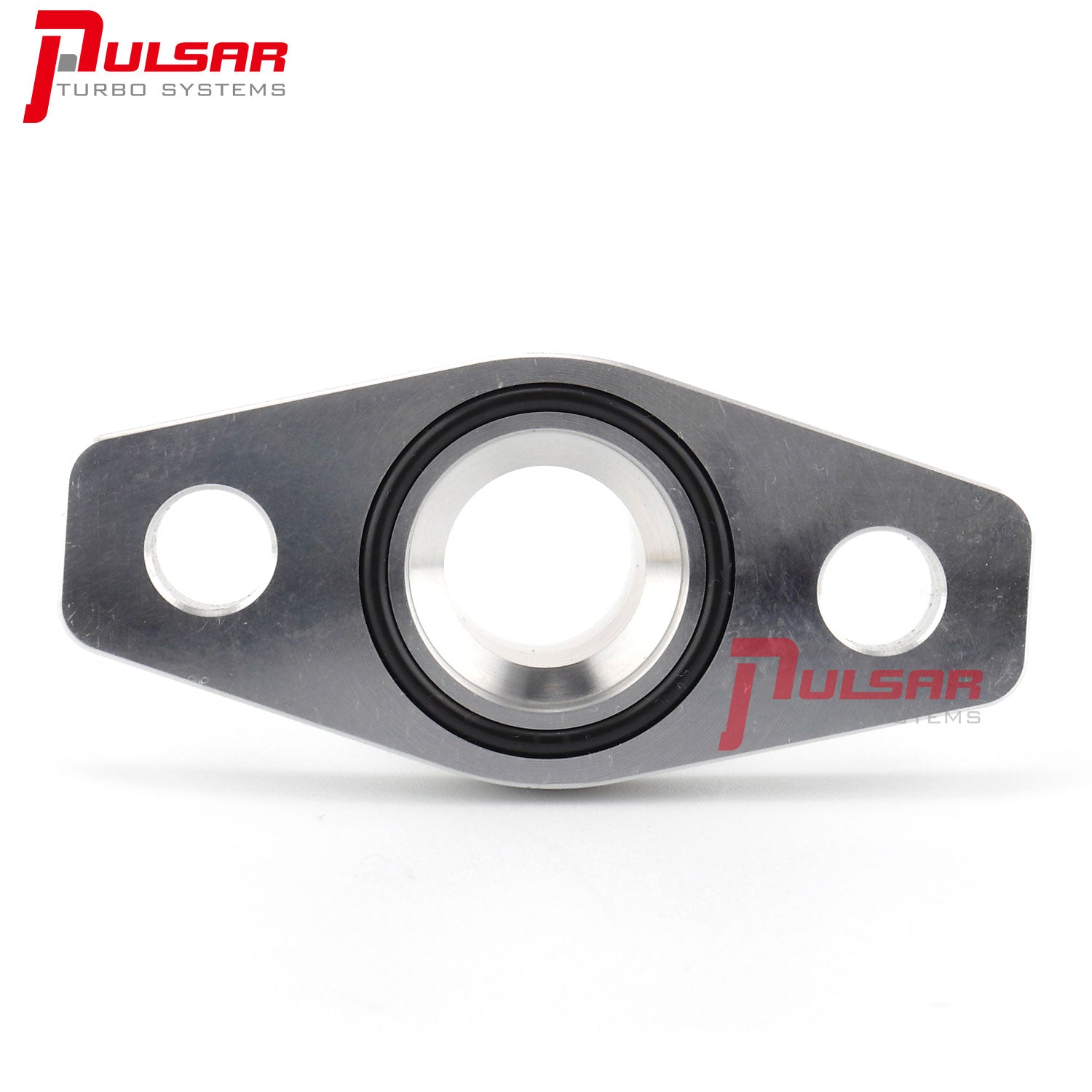

- Oil Drain: -12AN(O-Ring sealed Flange Kit Incl€™)
- Dual ceramic ball bearing system provides optimal turbo response &
better durability by reducing the shaft-motion - 9 Blade PTG-Aero billet compressor wheel with extended tapered tip technology

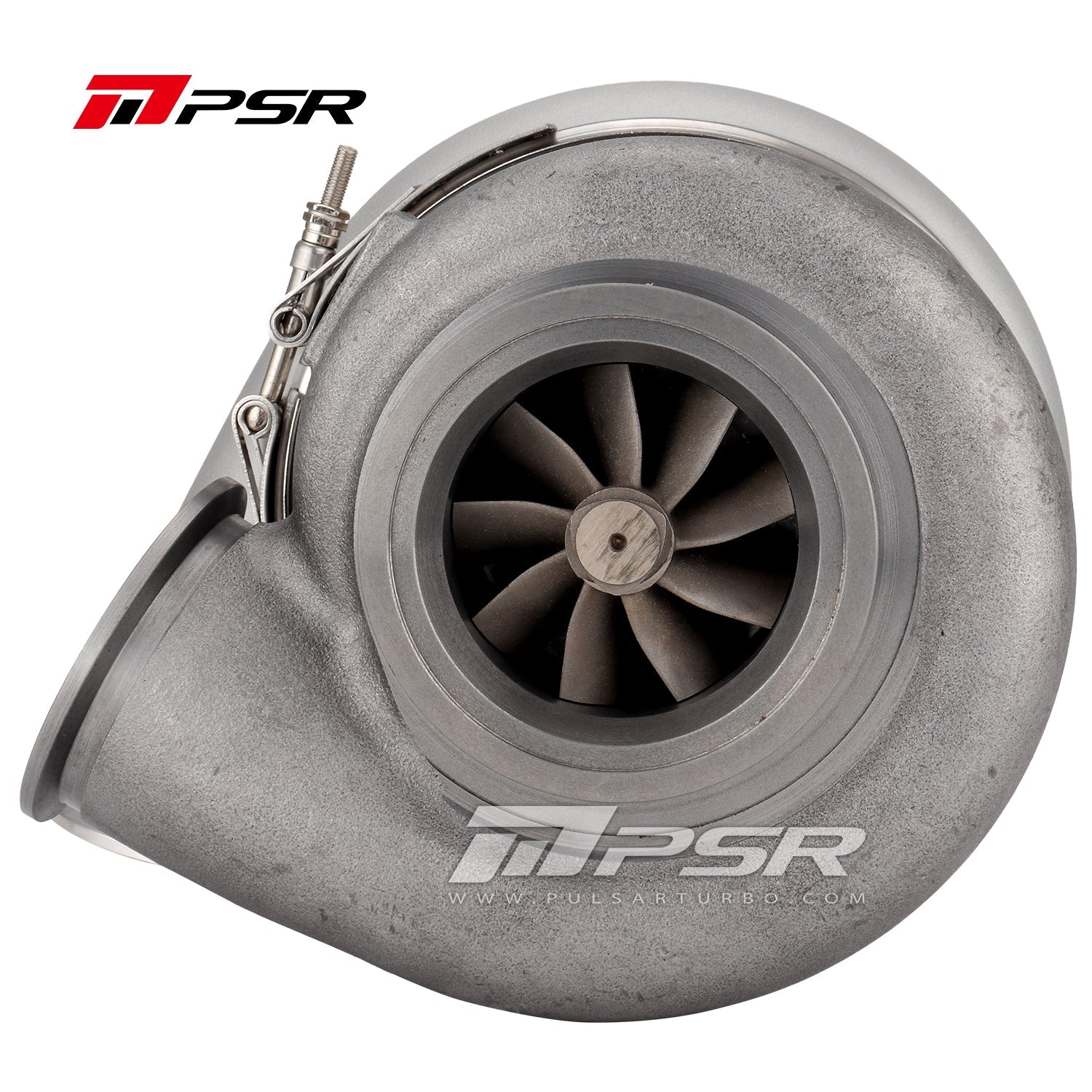

- 9 Blade PTG-Aero Inconel 713c turbine wheel
- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
T4 1.15 A/R housing is with an open style inlet, T4 1.28 A/R housing is with a twin-scroll inlet.
Eta - 1-2 Weeks from time of order to dispatch
