- Dual Ceramic Ball Bearing System
- 10 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
- Inconel 713c 10 Blade Turbine Wheel with High Horsepower
- Cover Integrated with the Speed Sensor Port
- 0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet, T4 0.82 V-Band outlet etc. turbine housings in option

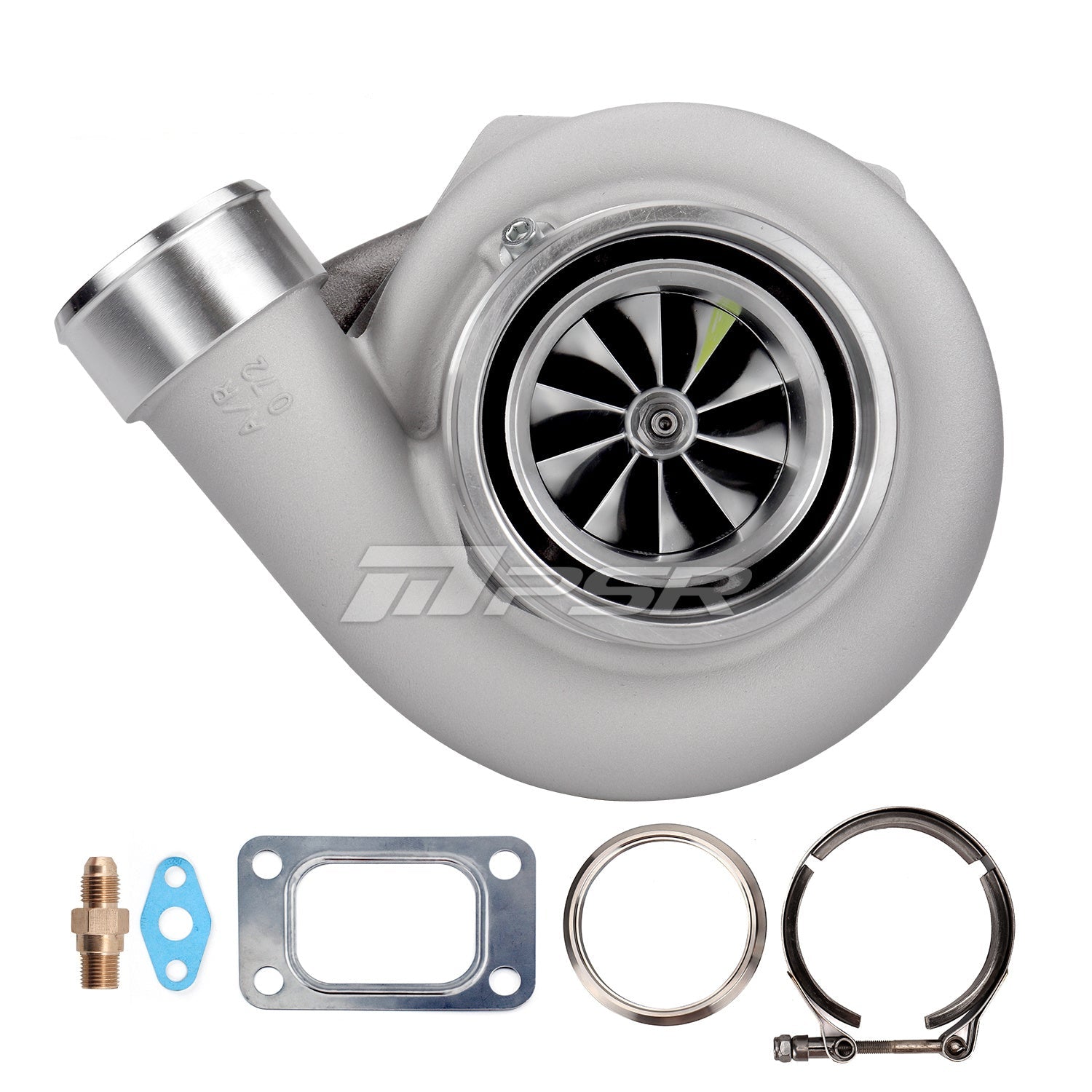

- V-Band Flange kit(s) for the exhaust housing included
- Max Air Flow rate: ~90 lb/min, rated @ 1000 FWHP
- Stronger Turbine Wheel for High flow
Â
-
- Compressor Wheel: 67*84mm
- Turbine Wheel: 74*66mm
- Compressor Inlet: 4.0€� Hose
- Compressor Outlet: 2.5€� Hose
- Turbine Inlet: T3, T4, or 2.5€³ V-Band
- Turbine Outlet: 3€³ V-Band (3.55€³OD)
- Oil Feed: -4 AN connect to the Oil Restrictor
- Oil Drain: Std T3 Flange
- Water In/Outlet: M14*1.5
- We highly recommended running water cooling for better durability
Â
- Based off our popular GTX3584RS series turbo, This is very similar but with the larger 66mm rear wheel.Â
-
PSR3584 GEN3 TURBO comes with stronger turbine wheel for high flow.
Eta - 1-2 Weeks from time of order to dispatch
