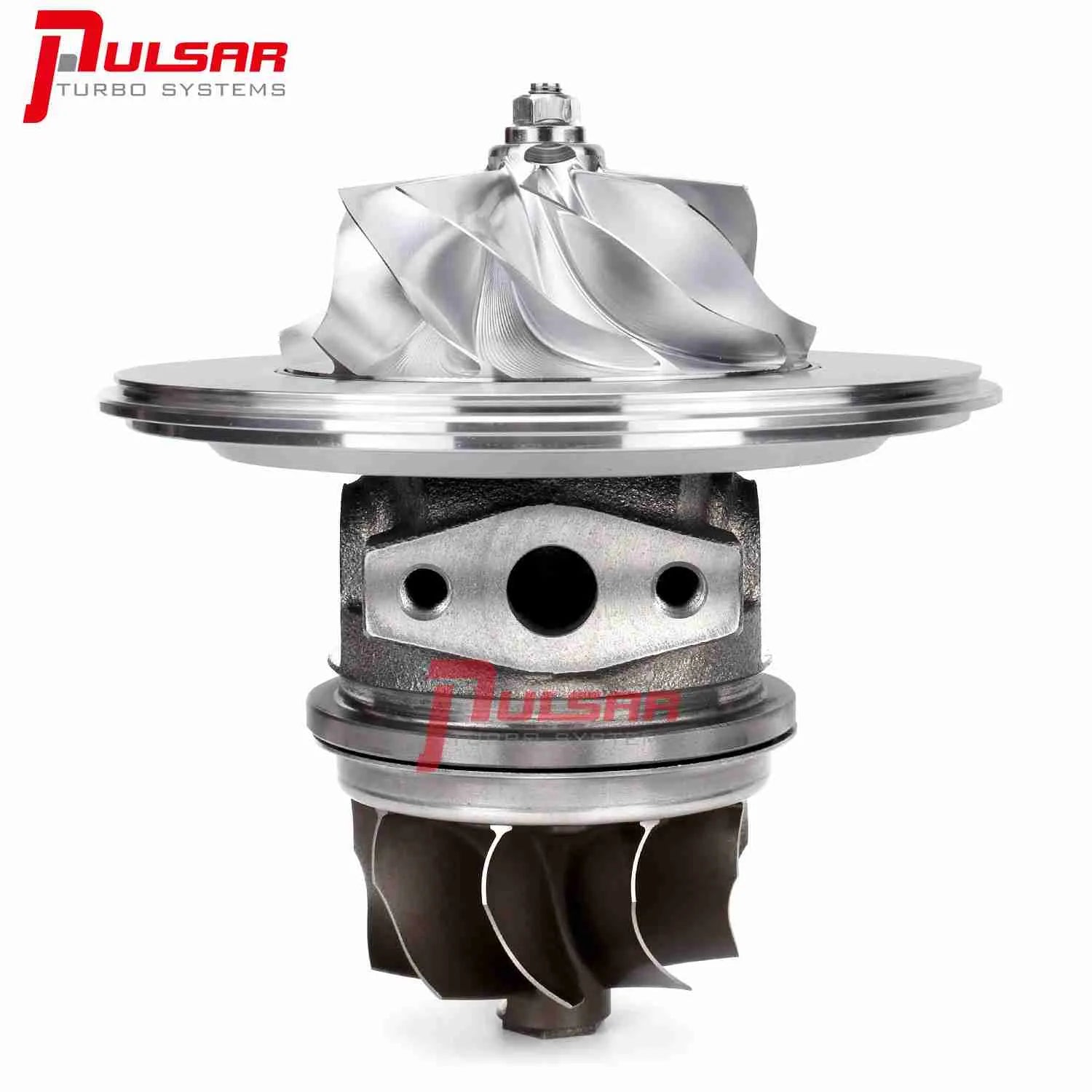

- Dual Ceramic Ball Bearing System

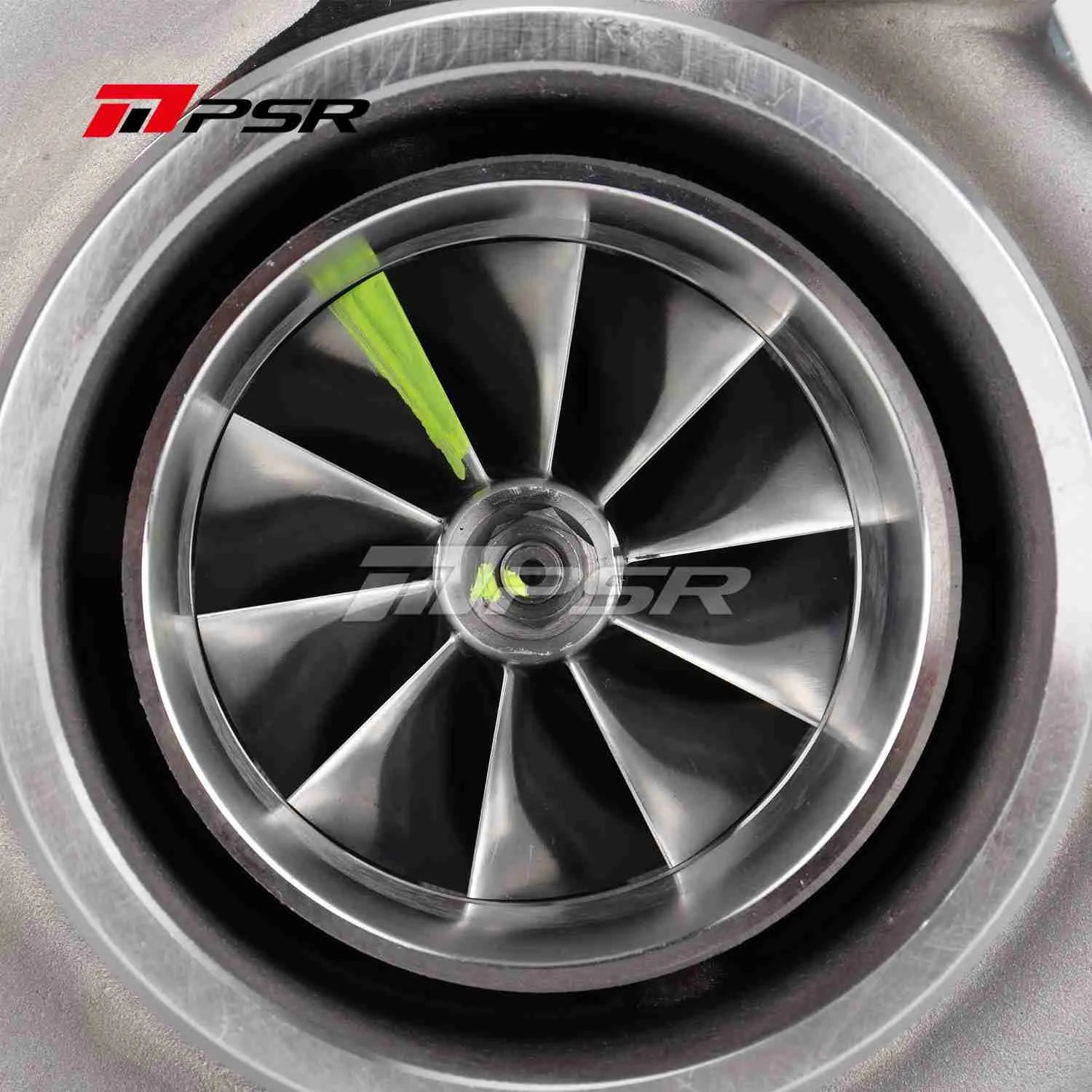

- 10 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
- Inconel 713c Gen2 9 Blade Turbine Wheel with “RS” blade profile design

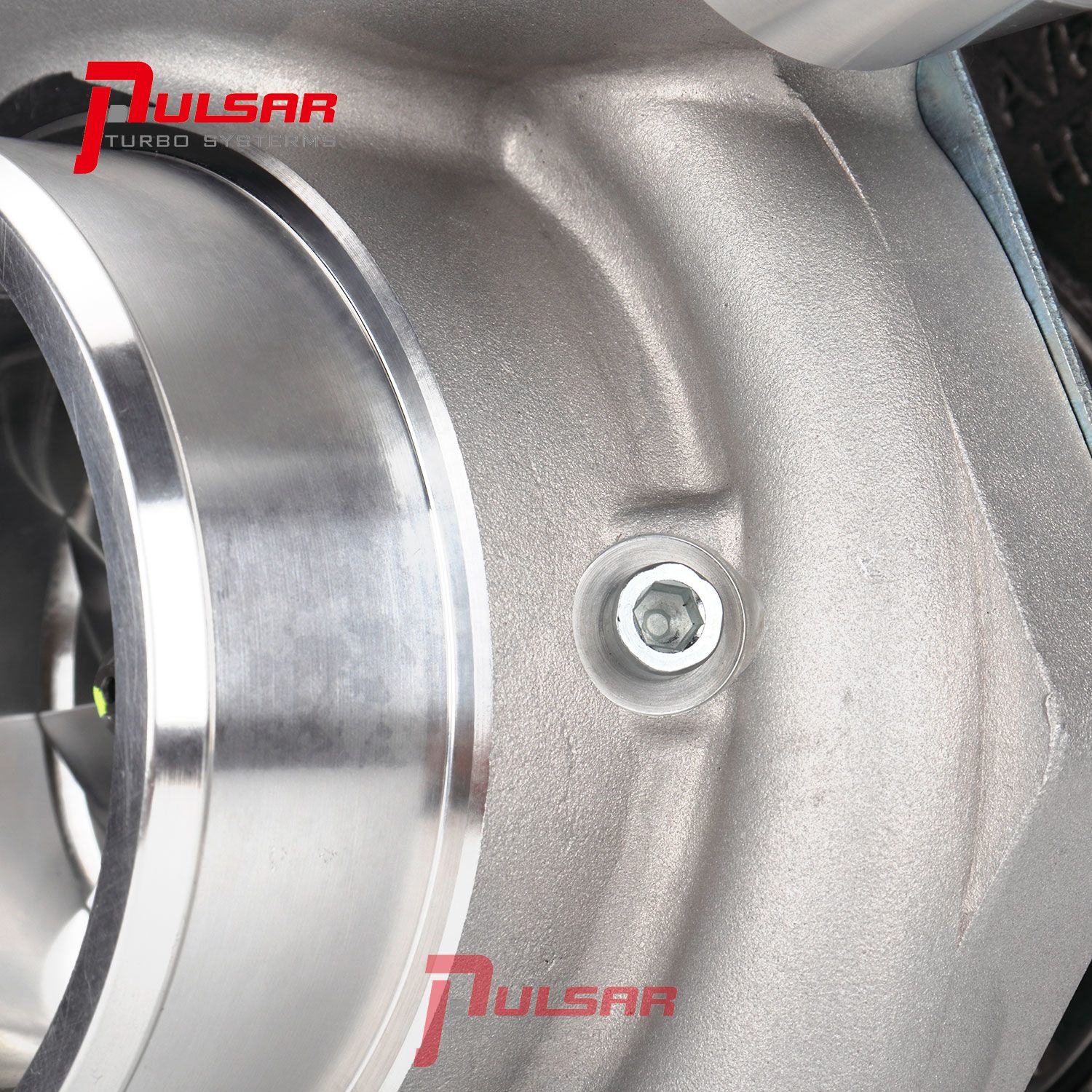

- Gen2 Cover Integrated with the Speed Sensor Port
- 0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet, etc. turbine housings in option
- V-Band Flange kit(s) for the exhaust housing included
- Max Air Flow rate: ~90 lb/min, rated @ 1000 FWHP
-
- Compressor Wheel: 67*84mm
- Turbine Wheel: 68*62mm (“RS” blade profile)
- Compressor Inlet: 4.0 Hose

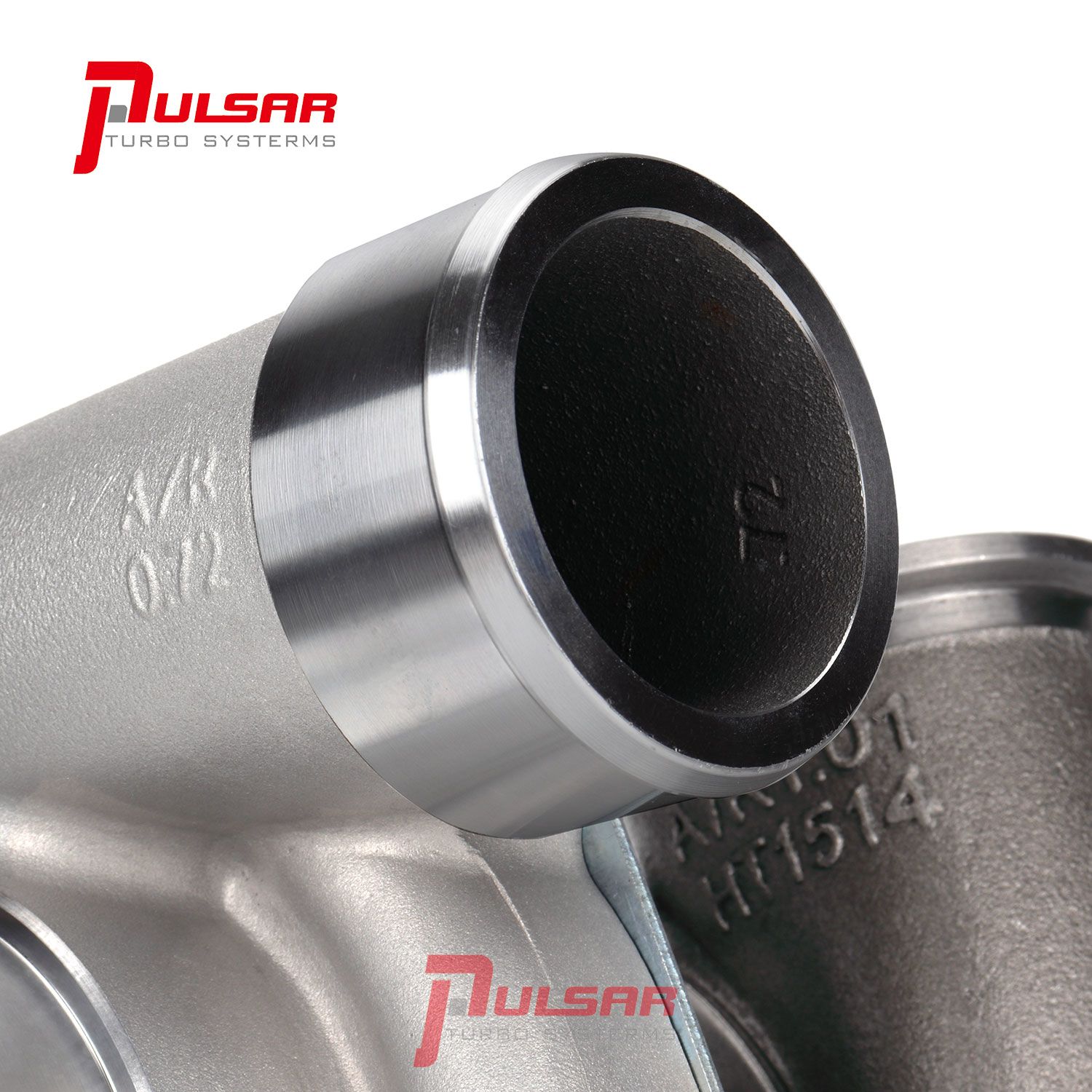

- Compressor Outlet: 2.5 Hose
- Turbine Inlet: T3, T4, or 2.5″ V-Band
- Turbine Outlet: 3″ V-Band (3.55″OD)
- Oil Feed: -4 AN connect to the Oil Restrictor
- Oil Drain: Std T3 Flange
- Water In/Outlet: M14*1.5
We highly recommended running water cooling for better durability.

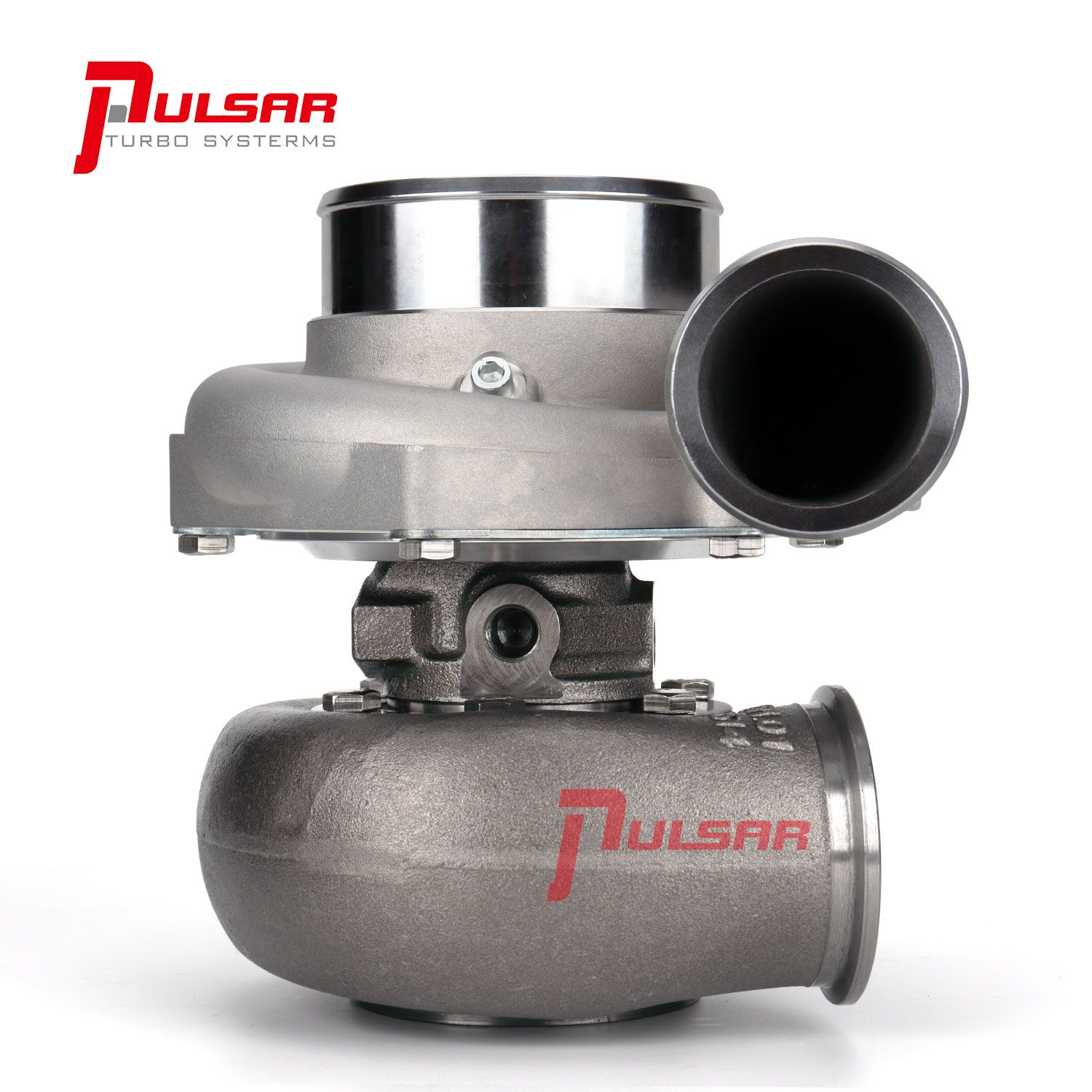

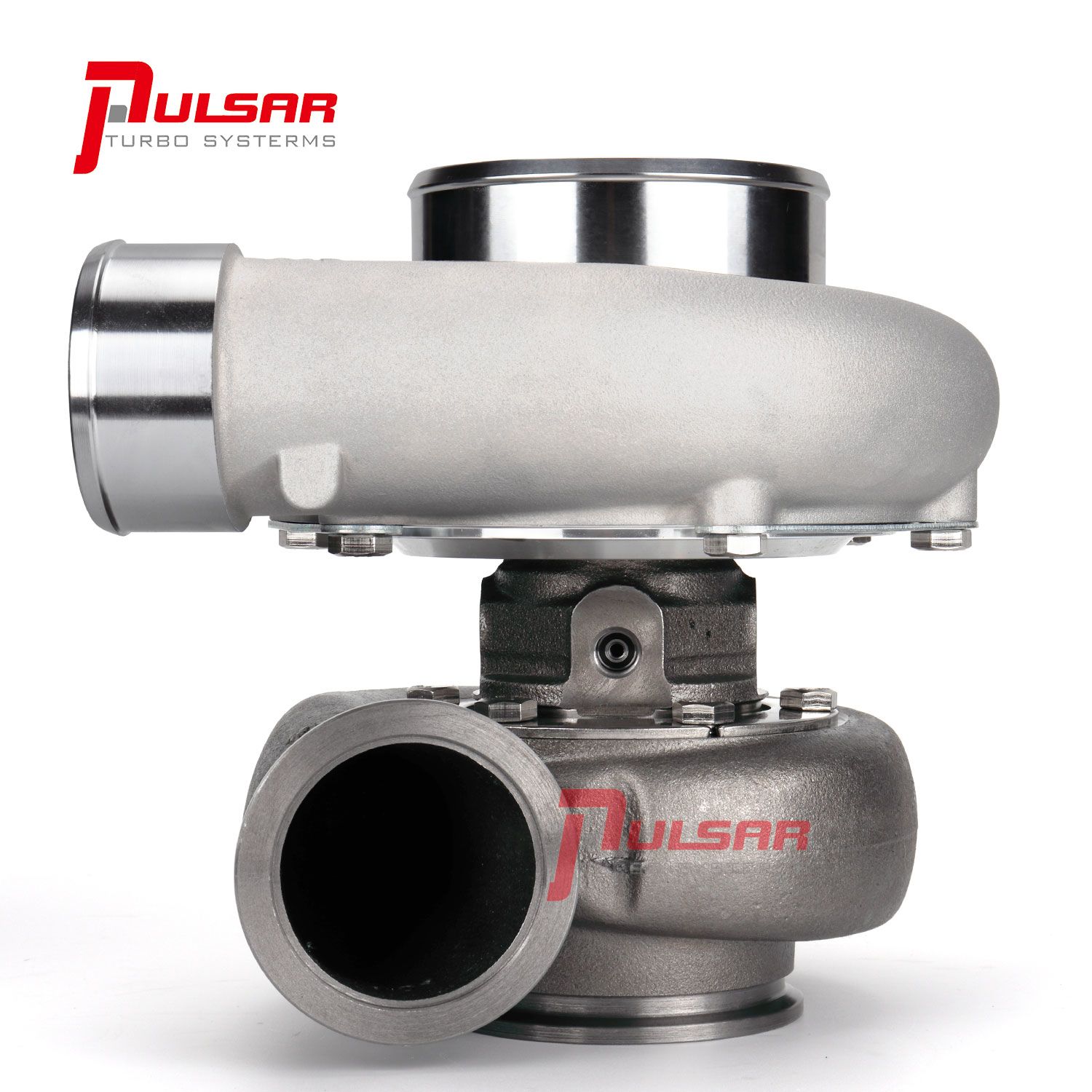

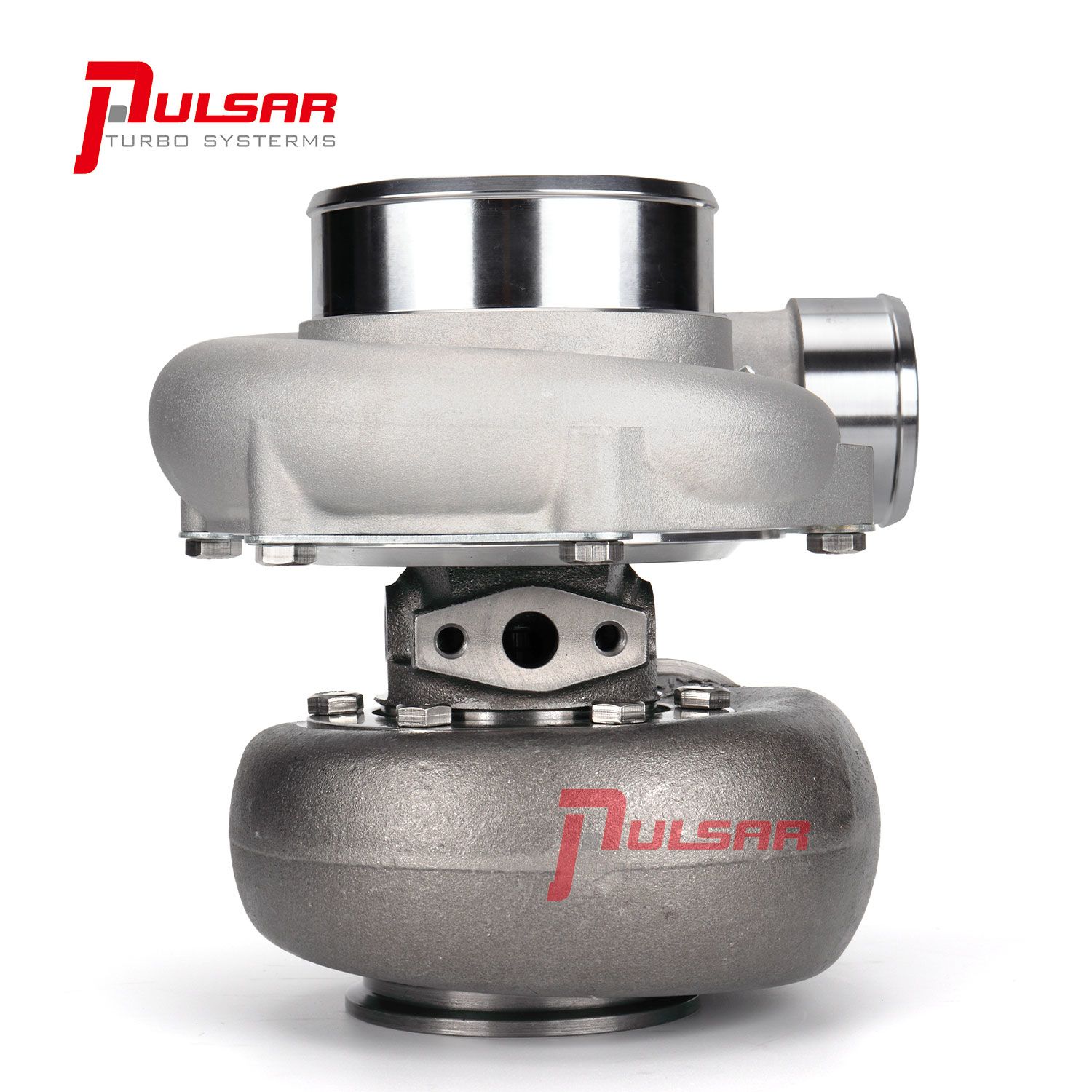

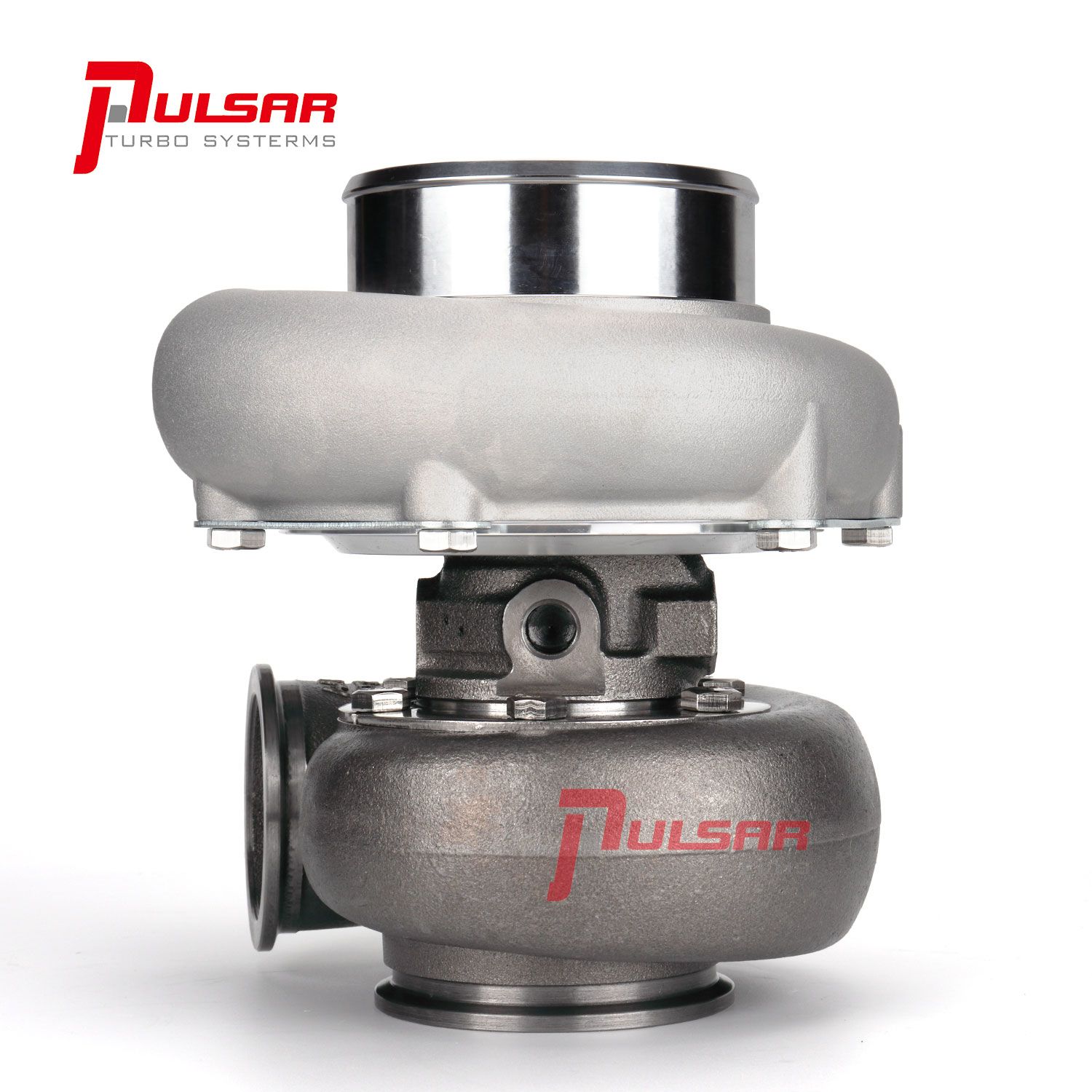

PULSAR Turbo PSR3584RS GEN2 Turbocharger
On Backorder
Leave your email and we will let you know as soon as it is available to order.
