Toyota 86 / Subaru BRZ (2012–2021) Mishimoto Oil Cooler Kit
Brand: Mishimoto
Fitment: Toyota 86 / Subaru BRZ
Year: 2012–2021
Engine: 2.0L FA20
Chassis: ZN6 / ZC6
Product Type: Engine Oil Cooler Kit
Keep engine oil temperatures under control during spirited street driving, track use and other high-load conditions with the Mishimoto Direct-Fit Oil Cooler Kit for the first-generation Toyota 86 and Subaru BRZ.
Designed specifically for the FA20 platform, this complete kit positions a large 19-row stacked-plate oil cooler in the front bumper where it receives strong airflow for effective heat dissipation.
Choose between black or silver oil cooler cores, with either a standard or thermostatic oil sandwich plate depending on your application.
Available Variants

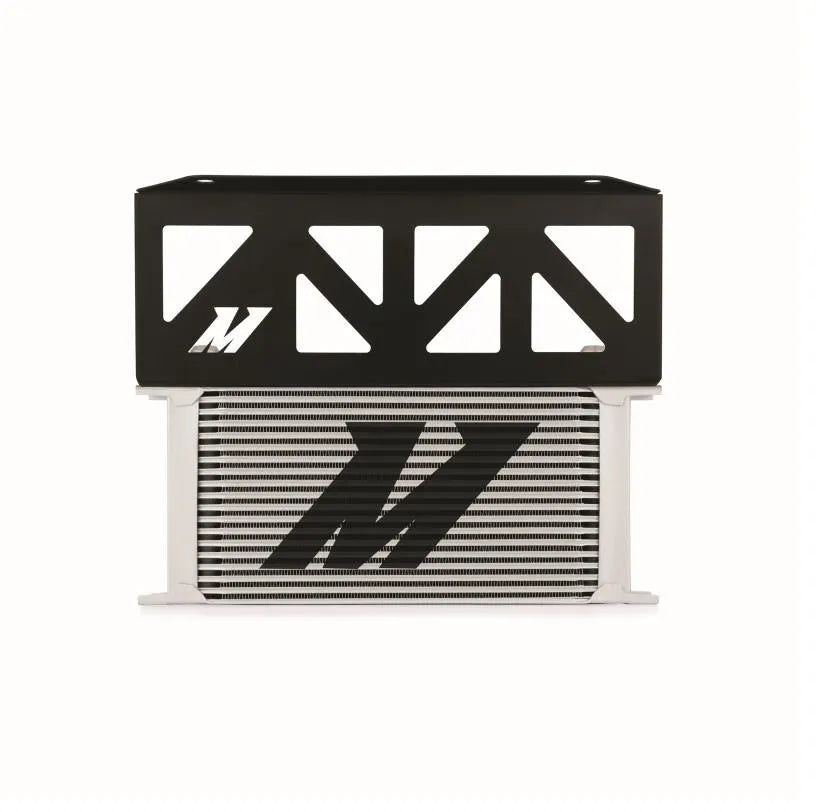

Silver – Standard
Silver 19-row oil cooler with standard oil sandwich plate.
SKU: MMOC-BRZ-13

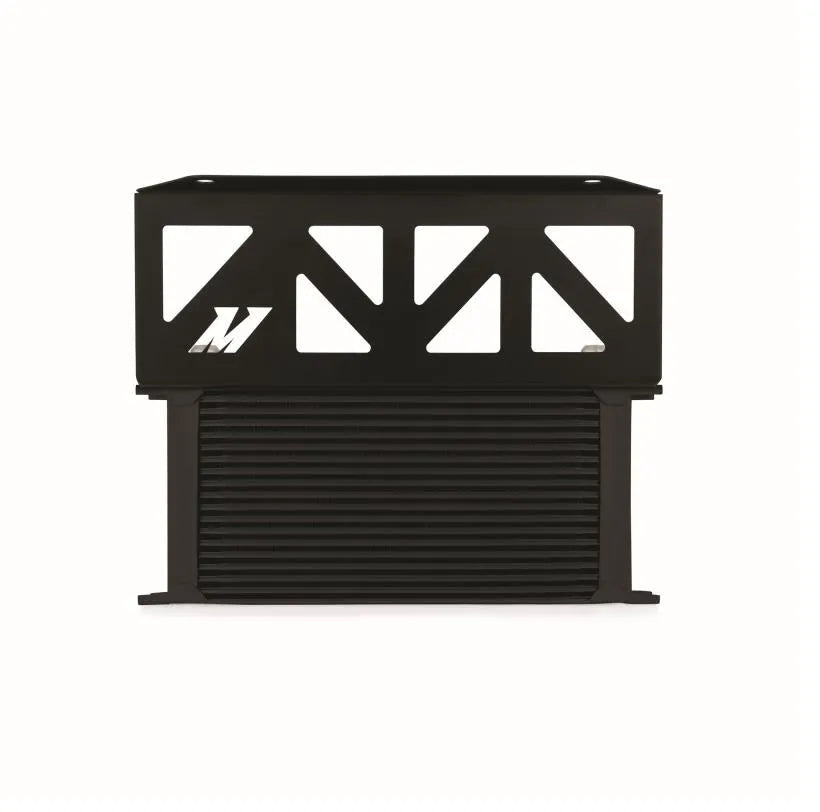

Black – Standard
Black 19-row oil cooler with standard oil sandwich plate.
SKU: MMOC-BRZ-13BK
Silver – Thermostatic
Silver 19-row oil cooler with thermostatic oil sandwich plate.
SKU: MMOC-BRZ-13T
Black – Thermostatic
Black 19-row oil cooler with thermostatic oil sandwich plate.
SKU: MMOC-BRZ-13TBK
Standard vs Thermostatic
Standard
The standard sandwich plate continuously routes engine oil through the external oil cooler.
Best suited to vehicles that regularly experience sustained high oil temperatures, including dedicated track and motorsport applications.
Thermostatic
The thermostatic version incorporates an oil thermostat within the sandwich plate to regulate oil flow through the cooler.
This allows the engine oil to reach normal operating temperature more efficiently before directing significant oil flow through the external cooler, making it particularly well suited to street-driven and dual-purpose street/track vehicles.
Features
- Direct-fit design for Toyota 86 and Subaru BRZ
- Suits 2.0L FA20 engine
- 19-row stacked-plate oil cooler
- Choice of black or silver cooler
- Standard or thermostatic sandwich plate options
- Application-specific mounting bracket
- Braided stainless steel oil lines
- High-flow -10AN fittings
- Billet aluminium oil sandwich plate
- CNC-machined aluminium sandwich plate spacers
- Increased engine oil capacity
- Suitable for stock and modified engines
- Ideal for performance street and track applications
- Mishimoto Lifetime Warranty
Oil Cooler Specifications
- Rows: 19
- Core Length: 11 in / approx. 279 mm
- Core Height: 5.43 in / approx. 138 mm
- Core Thickness: 1.97 in / approx. 50 mm
- Engine: FA20 2.0L
- Chassis: ZN6 / ZC6
- Oil Capacity Increase: Approx. 0.65 qt / 0.62 L

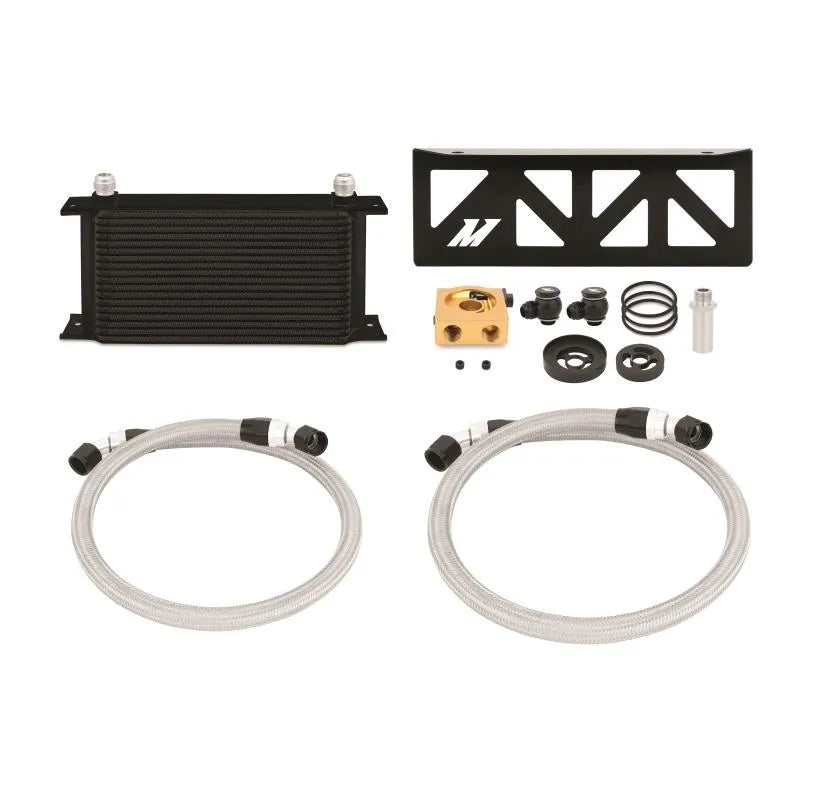

Kit Includes
- Mishimoto 19-row oil cooler
- Application-specific mounting bracket
- Stainless braided -10AN oil lines
- Oil sandwich plate
- CNC-machined aluminium sandwich plate spacers
- M20 stainless steel sandwich plate adapter
- M20 to -10AN banjo fitting and bolt
- 1/8" NPT plugs
- O-rings
- Mounting hardware
Vehicle Fitment
Toyota 86
2012–2021
ZN6
2.0L FA20
Subaru BRZ
2012–2021
ZC6
2.0L FA20
Designed for the first-generation 86 / BRZ platform.
Does not suit the second-generation GR86 or 2022-on Subaru BRZ fitted with the 2.4L FA24 engine.
Installation Notes
Recommended tightening torque for straight fittings and banjo bolts is 15–25 lb-ft.
Do not exceed 35 lb-ft.
All fittings, thermostat plugs and oil connections should be inspected for correct installation and checked for leaks before operating the vehicle
