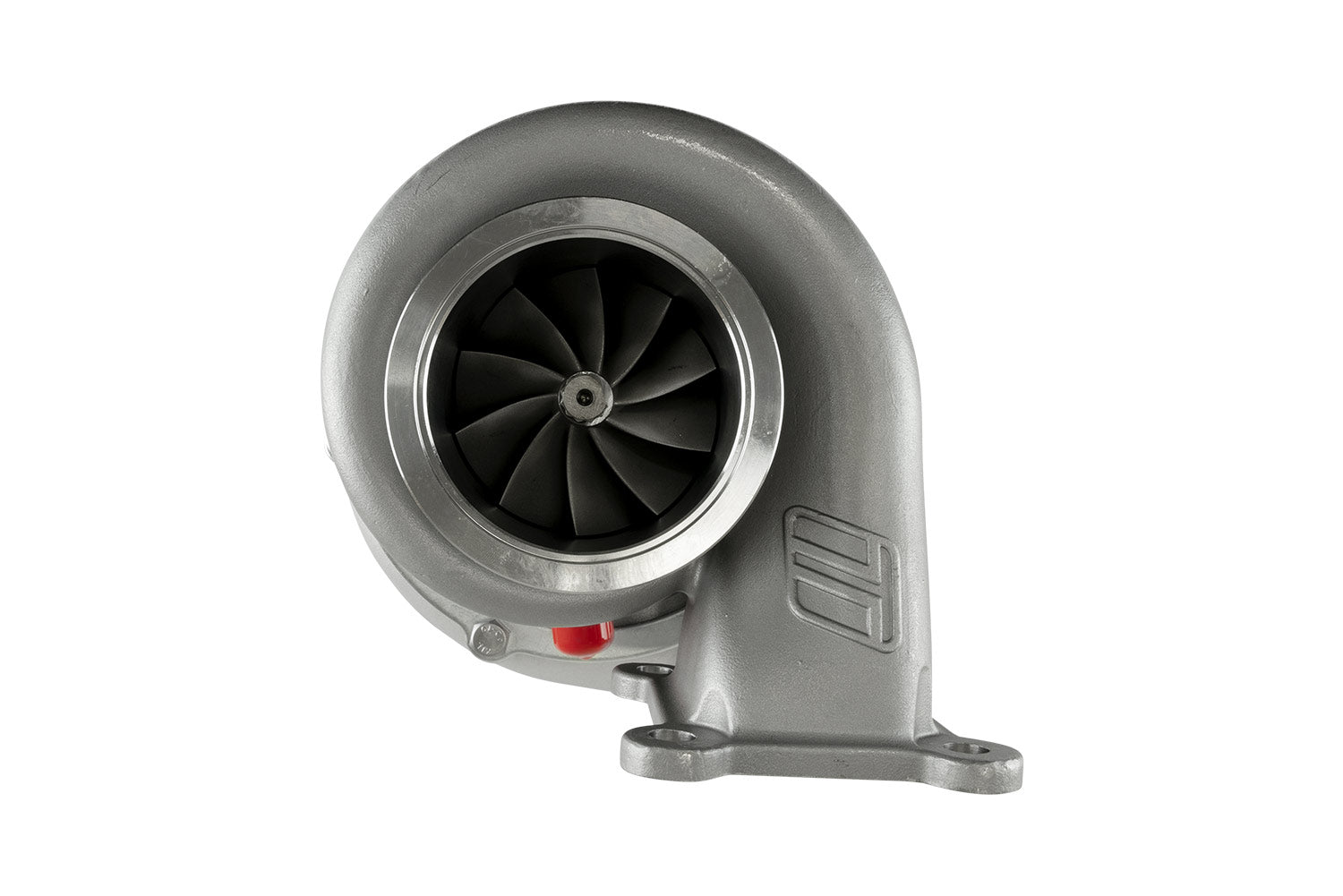

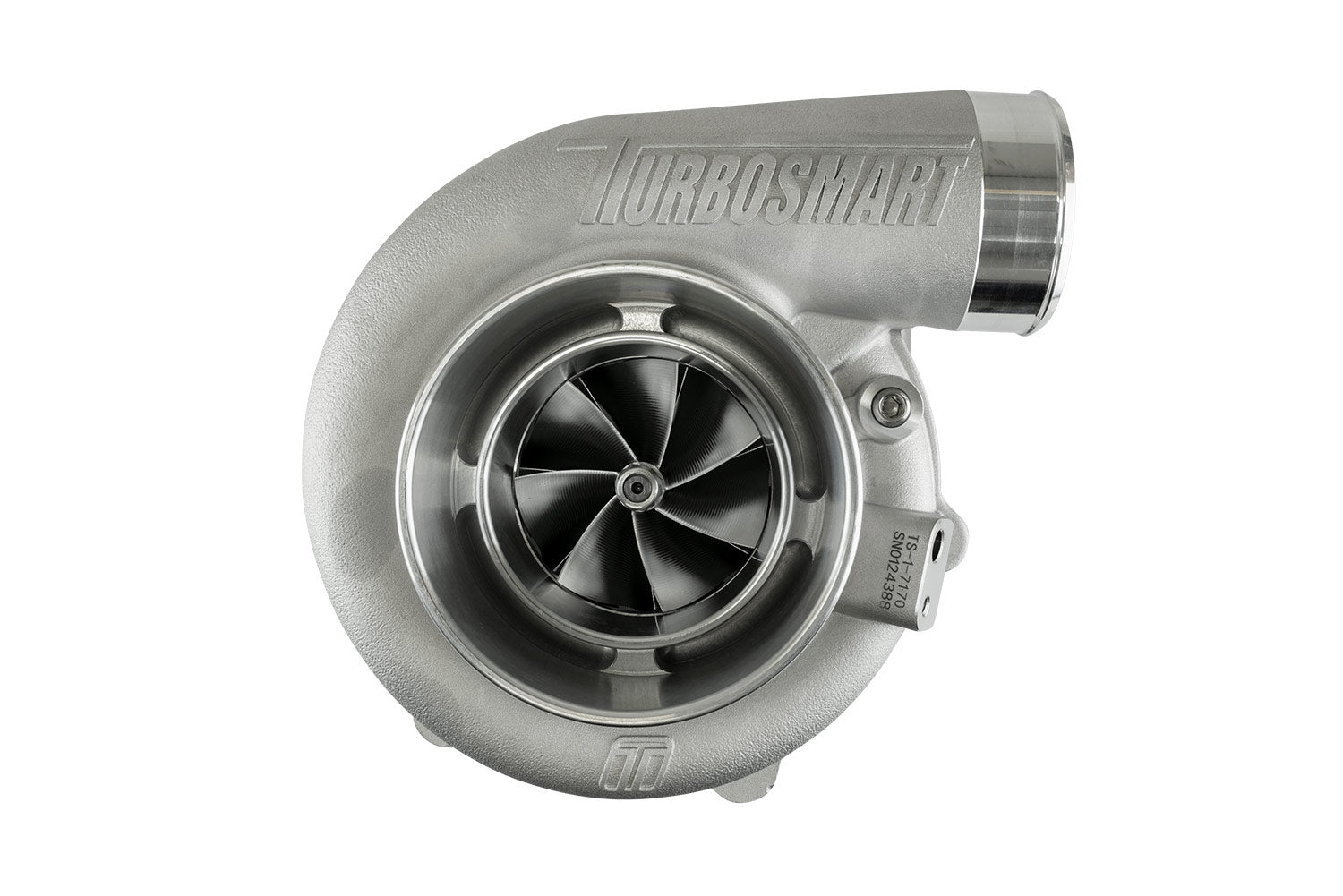

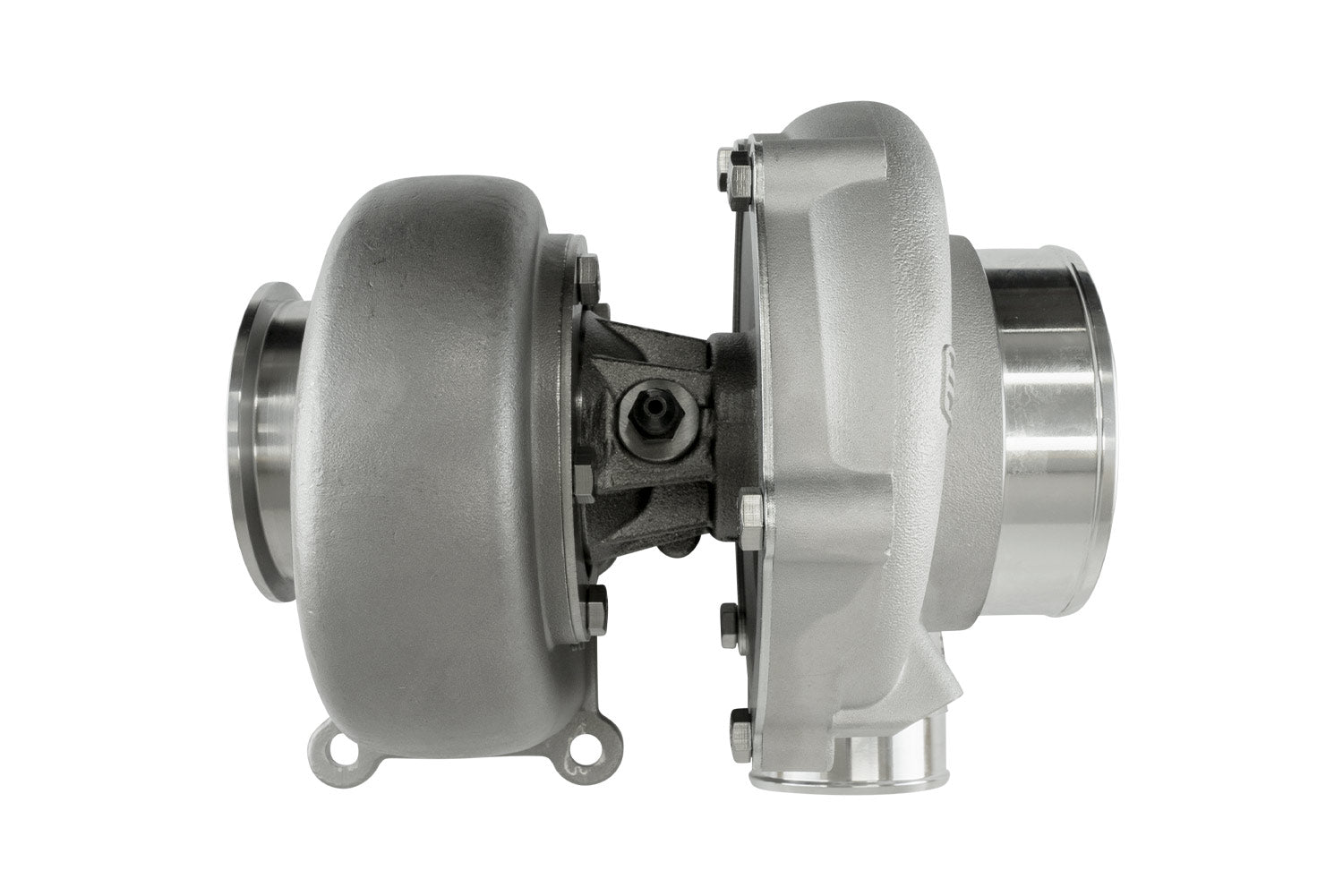

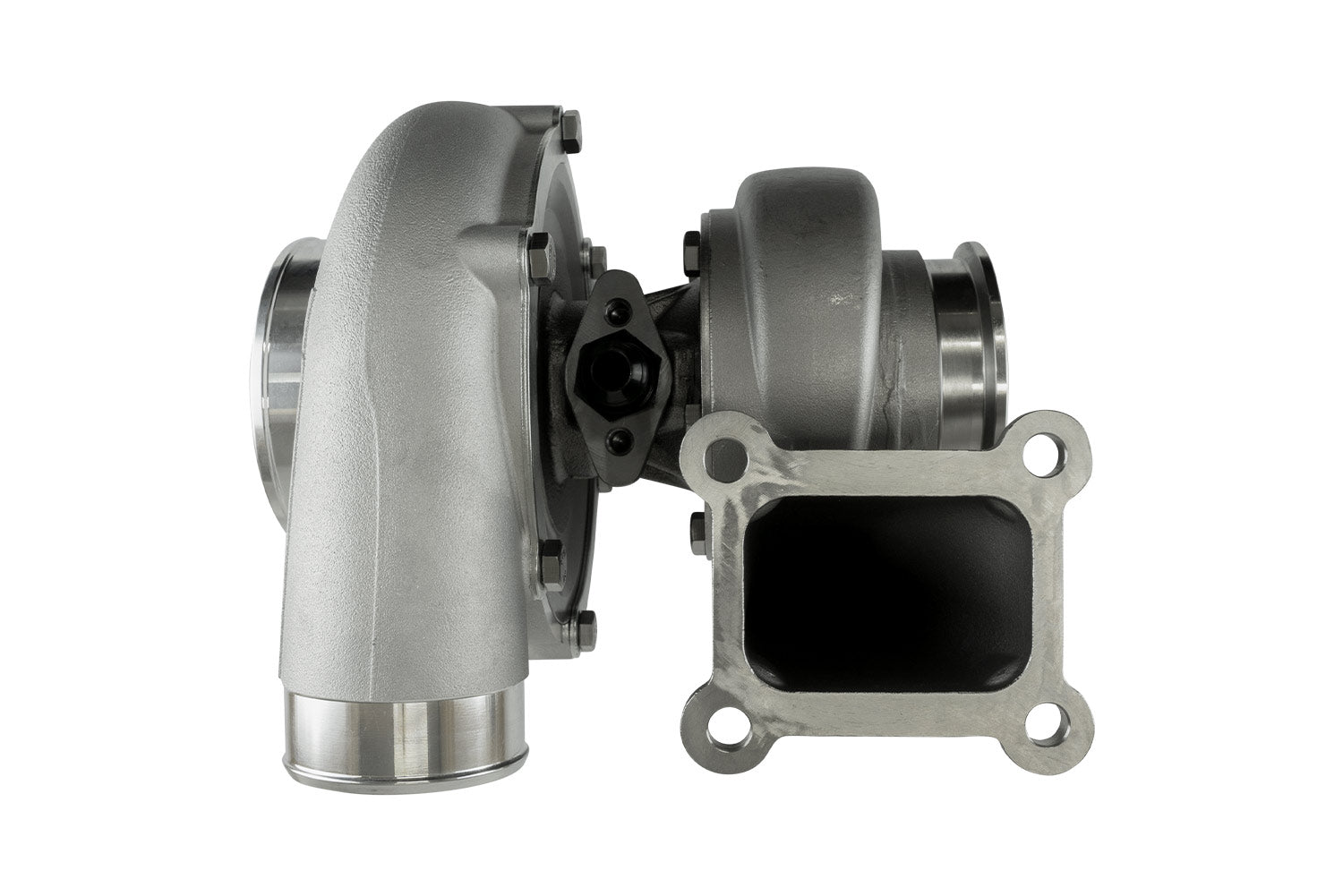

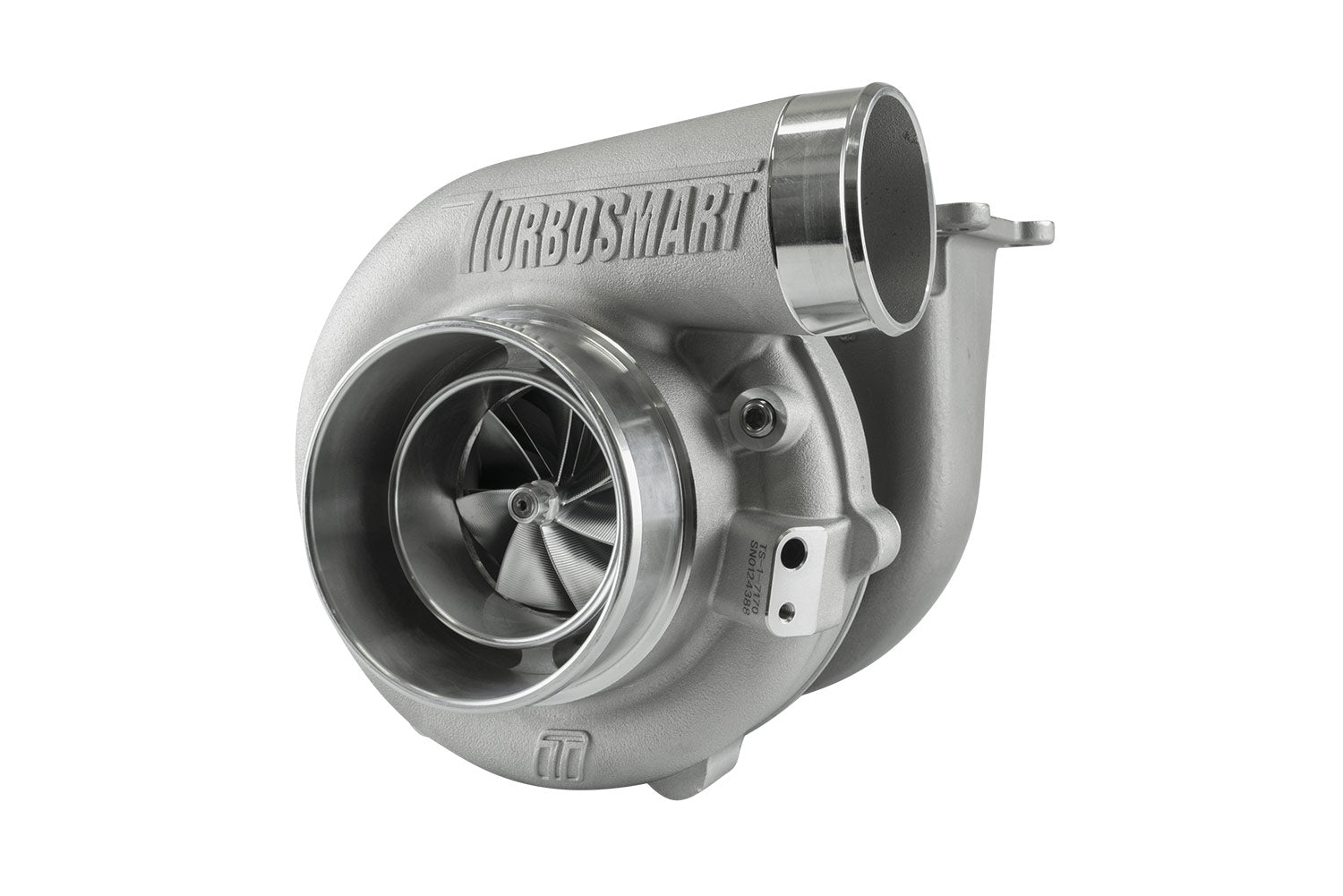

Turbosmart TS-1 7170 Kompact Turbocharger - T4 0.96 A/R External Wastegate
Genuine Turbosmart turbocharger supplied by Empire Performance for performance and replacement applications.
Smaller, Lighter and Faster - Turbosmart's turbocharger series has been developed to leverage modern materials, design and manufacturing techniques to create a turbocharger range that meets the demands of both motorsport, and performance enthusiasts alike.
The TS-1 series are oil cooled turbochargers with lightweight investment cast turbine housings, a proprietary bearing and main shaft combination which will provide transient response you never knew possible with the type of performance, quality, reliability and support you've come to know Turbosmart for.
The ultra-low rotating mass of our unique bearing and shaft assembly is matched to aggressive compressor aerodynamics to ensure high levels of performance at lower shaft speeds which is mated with a unique turbine wheel to ensure power at high loads and flow is maintained.
All Turbosmart turbochargers have been designed with an engine end-to-end approach aiming to achieve power through reduced back pressure and high performance turbines - while being smaller, lighter and faster in response than other solutions on the market.
Key Features
- Unparalleled transient response
- Aggressive aerodynamics with 7+7 2618 Aluminium splitter wheels
- Lightweight 310s stainless steel investment cast turbine housings
- Lightweight, Aluminium compressor covers
- CFD driven designed housings for optimal A/Rs and flow
- 713C Inconel turbine wheel for extreme EGT's
- VSR speed balanced
- Proprietary dual ceramic bearing system
- Integrated Iron backplate on center housing
Specifications
- Compressor Inlet: 4" / 101.6mm
- Compressor Inducer: 71mm
- Turbine Inlet: T4
- Turbine Exducer: 70mm
- Turbine AR: 0.96
- Turbine Outlet: V-Band (3.00")
- Weight: 6.86kg / 15.1lbs
- Horsepower Rating: 875-1010HP

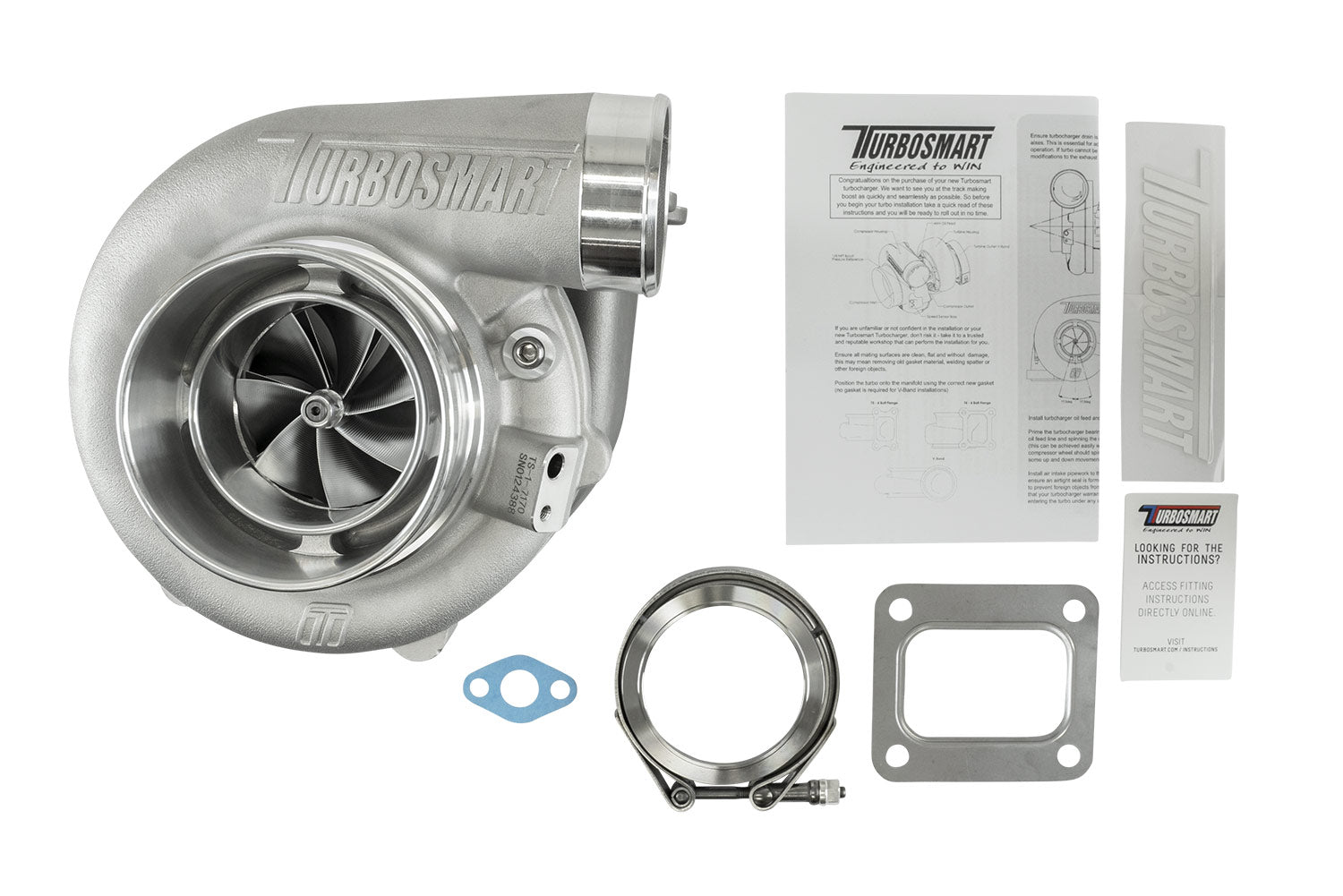

What's Included
- Weld flanges
- V-band clamps
- Gaskets
- Oil feed and drain fittings
Availability: Turbosmart products may be held in stock or supplied to order. If your order is time sensitive, please contact Empire Performance to confirm availability.
